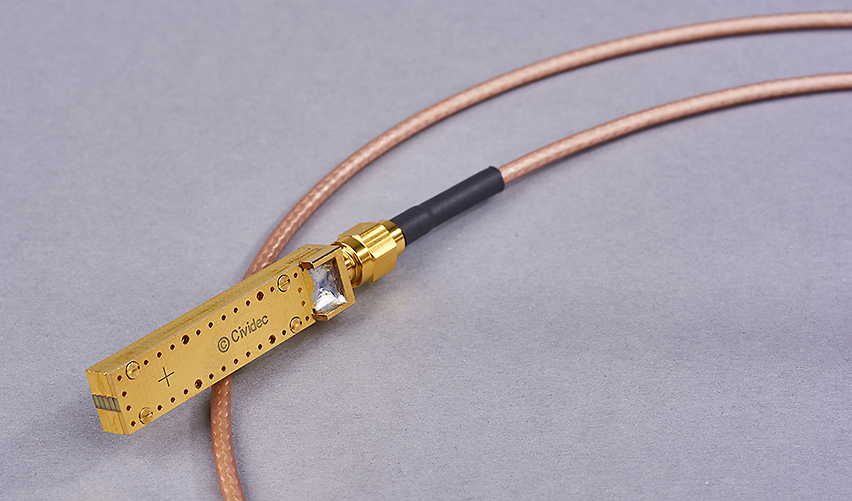

B6-C紧凑型热中子金刚石探测器

B6-C紧凑型热中子金刚石探测器

Thermal-Neutron Probe

The B6-C Compact Thermal-Neutron Diamond Detector has been developed for the measurement of thermal neutrons in confined spaces. For the neutron detection the 6Li(n,α)t reaction is used. For the calibration of the detector with α-particles, an aperture is foreseen on the rear side of the detector.


￥ 0.00
0.00


Thermal-Neutron Probe

The B6-C Compact Thermal-Neutron Diamond Detector has been developed for the measurement of thermal neutrons in confined spaces. For the neutron detection the 6Li(n,α)t reaction is used. For the calibration of the detector with α-particles, an aperture is foreseen on the rear side of the detector.


FEATURES
Sensor material:
sCVD diamond
Active area:
10 mm2
Neutron converter:
6LiF with 95% enrichment
Efficiency for thermal neutrons:
1%
Perimeter:
1/2 inch in diameter

ADDITIONAL PRODUCT INFORMATION
For the calibration with α-particles, the top plate of the B6-C detector is to be removed, as shown in the Picture. An aperture of 1 mm is foreseen for such calibrations.

It is recommended to perform energy calibrations under vacuum. The distance from calibration aperture to sensor is 1.5 mm.
