C2-HV

C2-HV

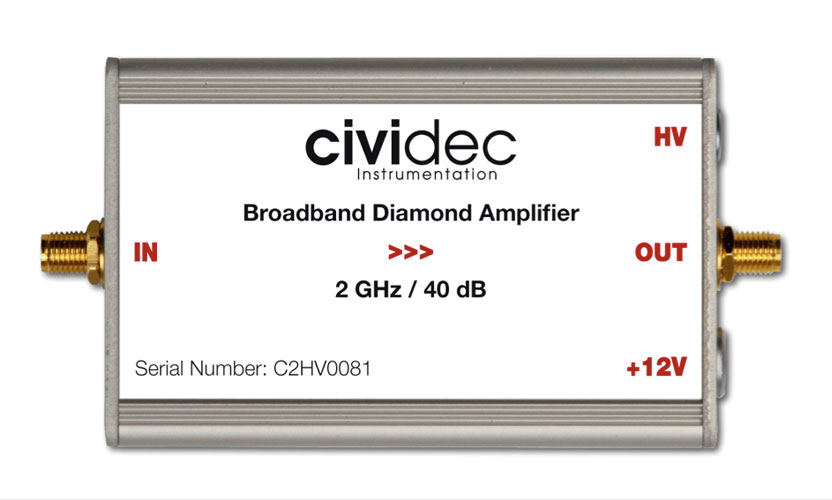

C2-HV BROADBAND AMPLIFIER, 2 GHz, 40 dB

General Purpose Current Amplifier, integrated Bias-Tee

The C2-HV Broadband Amplifier is a low-noise current amplifier with an analog bandwidth of 2 GHz and 40 dB gain. Its speed is optimized for the use as front-end amplifier for diamond detectors. It has an integrated Bias-Tee.


￥ 0.00
0.00


C2-HV BROADBAND AMPLIFIER, 2 GHz, 40 dB

General Purpose Current Amplifier, integrated Bias-Tee

The C2-HV Broadband Amplifier is a low-noise current amplifier with an analog bandwidth of 2 GHz and 40 dB gain. Its speed is optimized for the use as front-end amplifier for diamond detectors. It has an integrated Bias-Tee.


FEATURES
Type:
Broadband current amplifier
Gain:
40 dB
Bandwidth:
1 MHz - 2 GHz
Input / Output Impedance:
50 Ω
Bias-Tee:
Included

ADDITIONAL PRODUCT INFORMATION
The C2-HV Broadband Amplifier is an non-inverting, bipolar current amplifier with high gain. The speed and the high bandwidth of the amplifier is optimized for the use as front-end amplifier for diamond detectors. In combination with the low equivalent input noise figure of 0.4 μA, this amplifier is best suited for single MIP particle detection.

The input signal during electronic calibration is shown in the Figure in red. The amplified output signal of the amplifier is shown in blue.
The C2-HV Broadband Amplifier has an excellent linearity in the full output range of ±1 V, with an effective gain of 43 dB.

The 50 Ω input impedance allows using very long detector cables between detector and amplifier input. The 50 Ω output impedance allows using very long measurement cables between amplifier output and oscilloscope.
