XANDY is the data acquisition system, power controller and monitoring unit for the Diamond XBPM® detector. It provides the measurement of the 4 quadrants, A, B, C, D of the XBPM® detector as well as the intensity and relative position of the X-ray beam in x and y at experimental beam lines of Synchrotron Light Sources. Results are transferred from the embedded Linux-based device server via Ethernet to the control system or to the desktop, where the browser-based GUI provides easy access to the data for on-line monitoring.
Parameters: Type: XANDY AX108 Number of channels: 4 Embedded amplifiers: Switch amplifier Data rate: 1 - 10 - 100 kHz Data resolution: 24 bit
Output: Output: A, B, C, D, x, y, I Data format: 32 bit Interface: Browser-based GUI API: Epics, Tango Communication rate: 1 Hz to control system

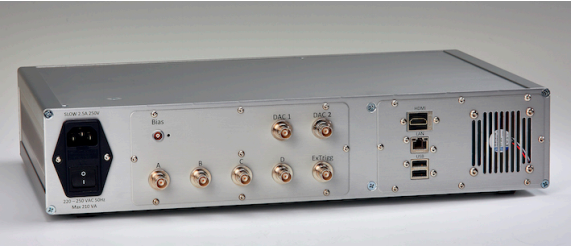

I/O connections: A, B, C, D four analogue inputs with BNC connectorsExTrigg analogue input for external trigger DAC 1 & 2 analogue output for feedback to beam controlBias output for detector bias voltageLAN for remote connection2 USB socketsHDMI for monitor Power supply: Integrated power supply for XBPM® detector +50 V @ 1 mA 2 DAC output, 16 bit, ˘10 V Chassis: 19” Table top19” Rack mountInterfaces: Browser-based GUI for data acquisition and monitoringBrowser-based GUI for power controlAPI for communication to control systems1
